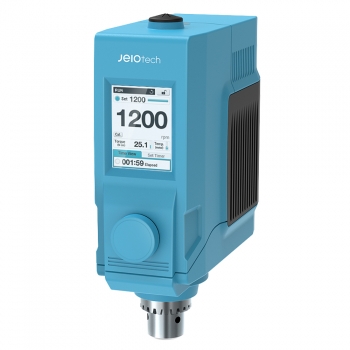

MSH-0520 Mechanical Stirrer(LCD, digital)
Structural Functional Features
- Possible for user to select clockwise (CW) / counter clock wise. (CCW)
- Slim & compact design.
- Convenient adjustment of height with pass-through impeller shaft.
- Chuck with excellent corrosion resistance. (Max Ø10 mm)
- 2 models provided according to torque and rpm.
Use Convenience Features
- Best effort function to maintain maximum set rpm by monitoring sample viscosity changes in real time. (application 10-2014-0124899)
- Accurate stirring with PID feedback control.
- Count-down timer provided. (up to 99 hours and 59 minutes)
- Operating elapsed time display function.
- Machine operation and data management with USB connection.
- Complete with accessories such as impeller, stand, clamp, etc.
Outstanding Safety
- Safety ensured by BLDC motor that does not generate sparks.
- Excellent heat dissipation structure makes use for a long time without any trouble.
- Continual use in safe by over temperature and overload protection.
- Malfunction prevented by controller lock function.
- Prevents sample run-off by smooth stirring start and stop function.
- Motor protection by displaying motor temperature in three colors.
Specialized External Controller
- When harmful fumes are generated through stirring, the reaction proceeds inside the fume hood and the device is safely controlled by external controller at outside.
- Checking control status in real time and controls start/stop or stirring speed changes.
- Color LCD display for intuitive and easy control.
Lab Companion’s Bluetooth for Mobile Use
- Connects wirelessly using smartphone or tablet PC with Bluetooth enabled and a mobile app.
- Checking control status in real time and controls start/stop or stirring speed changes.
- Automatic remote notification function in case of device failure during experiment.
Easy and convenient color touch LCD controller
- Intuitive operation with touch LCD controller and control knobs.
- Displays set value, actual value, time, torque, and motor temperature.
PC control and data management with USB connection
- Useful for data management through PC control.
- Dedicated software and USB cable provided as standard.
| Speed range (rpm) | 50 to 2000 |
|---|---|
| Viscosity, max. (cP) | 5000 (~2000rpm) 10000 (~1600rpm) 30000 (~600rpm) 50000 (~300rpm) |
| Stirring capacity (H2O), max. (L) | 60 (~2000rpm) |
| Rated torque (N,cm / inch) | 20.8 / 8.19 |
| Motor input / output (W) | 71 / 48 |
| Speed control | PID feedback control |
| Material | |
| Body | Powder coated aluminum |
| Cover | Polypropylene |
| Motor type | BLDC (Brushless Direct Current) |
| Dimension | |
| Chuck range (Ø, mm / inch) | 3~10 / 0.12~0.39 |
| Exterior (W x L x H) (mm / inch) | 80 x 185 x 235 / 3.15 x 7.28 x 9.25 |
| Net weight (kg / lbs) | 3.1 / 6.83 |
| Electrical requirements | AC 100 to 240V, 50/60Hz with power adapter |
| Power consumption (W) | 1.5A |
| Cat. No. | AAH371515U |
※ Tested with silicone oil at 26°C and 60% RH, and uses triple-bladed propeller impeller (Ø5O).
| Voltage | Hertz | Phase | Plug Type |
| 100-240 | 50/60 | 1P | Type B l NEMA 5 |
