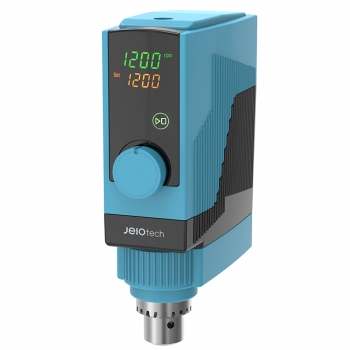

MSA-0420 Mechanical Stirrer(Analog)
Structural Functional Features
- Excellent durability BLDC motor and dedicated controller.
- Slim & compact design.
- Convenient adjustment of height with pass-through impeller shaft.
- Chuck with excellent corrosion resistance. (Max Ø10 mm)
Use Convenience Features
- Accurate stirring with PID feedback control.
- Easy operating for convenient use.
- Displays the set speed and the current speed at the same time.
- Pause buttons make it easier to observe experiments.
- Motor output detection and display.
- Complete with accessories such as impeller, stand, clamp, etc.
Outstanding Safety
- Safety ensured by BLDC motor that does not generate sparks.
- Excellent heat dissipation structure makes use for a long time without any trouble.
- Continual use in safe by over temperature and overload protection.
- Over temperature/overload warning notification displayed.
- Prevents sample run-off by smooth stirring start and stop function.
| Speed range (rpm) | 80 to 2000 |
|---|---|
| Viscosity, max. (cP) 1) | 5000 (~2000rpm) 10000 (~1200rpm) 30000 (~ 300rpm) 50000 (~ 200rpm) |
| Stirring capacity (H2O), max. (L / cu ft) | 20 / 0.71 (~2000rpm) |
| Rated torque (N,cm / inch) | 19 / 7.48 |
| Motor input / output (W) | 70 / 40 |
| Speed control | PID feedback control |
| Material | |
| Body | Powder coated aluminum |
| Cover | Polypropylene |
| Motor type | BLDC (Brushless Direct Current) |
| Dimension | |
| Chuck range (Ø, mm / inch) | 3~10 / 0.12~0.39 |
| Exterior (W x L x H) (mm / inch) | 75 x 215 x 150 / 2.95 x 8.46 x 5.9 |
| Net weight (kg / lbs) | 2.8 / 6.17 |
| Electrical requirements (120V/60Hz, A) | 0.5 |
| Cat. No. | AAH373325U |
1)Tested with silicone oil at 26°C and 60% RH, and uses triple-bladed propeller impeller (Ø5O).
| Voltage | Hertz | Phase | Plug Type |
| 100-240 | 50/60 | 1P | Type B l NEMA 5 |
