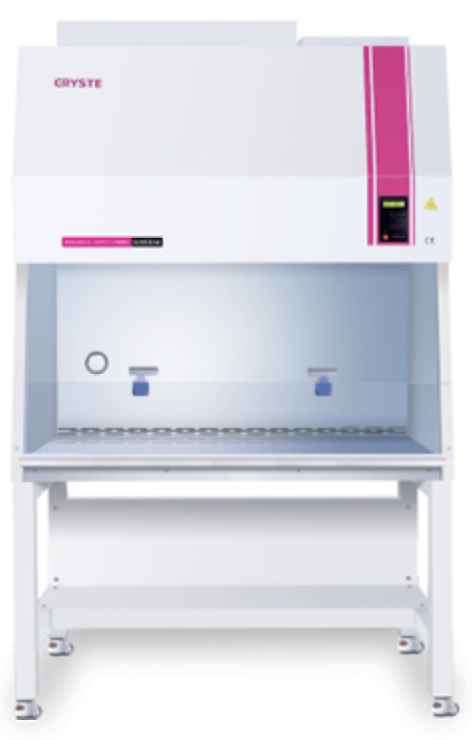

Cryste Puricube Neo Biosafety Cabinet – Technical Specifications

Overview

The Cryste Puricube Neo Biosafety Cabinet (BSC) is a Class II, Type A2 laminar airflow cabinet designed for sterile sample handling, microbiological research, and clinical diagnostics. It ensures operator, product, and environmental protection with HEPA filtration (99.99% efficiency) and ergonomic design.

Key Features

✔ Class II, Type A2 (NSF/EN 12469 Certified)
✔ 30% Recirculation, 70% Exhaust (Safe for Biosafety Level 1, 2, and 3 applications)
✔ Advanced HEPA Filtration (H14 Grade, 99.99% @ 0.3µm)
✔ UV Sterilization & LED Lighting
✔ Energy-Efficient DC Motor (Low Noise <55 dB)
✔ 10° Tilt Sash for Ergonomics
✔ Stainless Steel Work Surface (Corrosion-Resistant)
✔ Real-Time Airflow Monitoring & Alarm System

Technical Specifications

1. Classification & Safety Standards

• Type: Class II, Type A2 Biosafety Cabinet

• Compliance:

  • EN 12469:2000 (EU Standard)

  • NSF/ANSI 49:2020 (US Standard)

  • WHO GMP Guidelines

• Biosafety Level: Suitable for BSL-1, BSL-2, BSL-3

2. Airflow & Filtration

• Airflow Velocity: 0.36 ± 0.025 m/s (Inflow), 0.54 ± 0.025 m/s (Downflow)

• HEPA Filters:

  • Supply HEPA (H14): 99.99% @ 0.3µm

  • Exhaust HEPA (H14): 99.99% @ 0.3µm

• Filtration Efficiency: 99.999% for 0.1-0.2µm particles

• Air Recirculation: 30% Recirculated, 70% Exhausted

3. Dimensions & Ergonomics

• Sash: 10° Tilt, Height Adjustable (200-500 mm)

• Work Surface: 304 Stainless Steel (Seamless, Easy to Clean)

4. Electrical & Noise Levels

• Power Supply: 220V, 50/60Hz

• Motor: Brushless DC Motor (Energy Saving, 20% Lower Power Consumption)

• Noise Level: <55 dB

• UV Lamp: 36W (Optional Auto Shut-off Sensor)

• LED Lighting: ≥1000 Lux, Low Heat Emission

5. Control & Monitoring System

• Digital Display: Real-time airflow velocity, filter life, UV timer

• Alarm System: Airflow failure, filter saturation, sash misalignment

• Optional: Remote Monitoring (Wi-Fi/Bluetooth)

6. Material & Build Quality

• Cabinet Body: Powder-coated steel (Epoxy Finish, Anti-Corrosion)

• Work Surface: 304 Stainless Steel (Rounded Corners for Easy Cleaning)

• Glove Ports: Optional (For Additional Containment)

7. Applications

• Microbiology & Cell Culture Labs

• Pharmaceutical & Vaccine Development

• Clinical Diagnostics (PCR, Virology)

• Forensic & Biomedical Research

Why Choose Cryste Puricube Neo?

✅ Certified Safety (EN 12469 & NSF 49)
✅ Ultra-Low Noise & Energy Efficient
✅ Smart Monitoring with Alarm System
✅ Durable Stainless Steel Construction
✅ Customizable Options (UV, Glove Ports, Size Variants)
