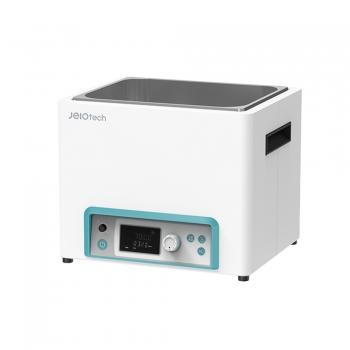

BW-20B Heating Bath
Structural Functional Features
- The internal bath is integral structure and It is made of stainless steel and has excellent durability.
- Compact design for excellent space utilization.
- The control part at the bottom front is tilted, making it easier to set up the product and check information.
- Convenient to use as the power switch is located on the front.
Use Convenience Features
- Intuitive and scale-type easy temperature setting make it suitable for simple experiments.
- Mounting accessories of various types and sizes convenience. (option)
Outstanding Safety
- Safe structure in which the heater, sensor, and pump inside the bath are separated by covering plates.
- Over temperature limit function.
| Weight | 37 lbs |
|---|---|
| Dimensions | 21 × 25 × 15 in |
| Bath volume (L / cu ft) | 20 / 0.7 |
| Temperature | |
|---|---|
| Working temp. range (℃ / ℉) | Amb. +7 to 100 / Amb. +12.6 to 212 |
| Temp. stability at 50℃ (±℃ / ℉) | 0.5 / 0.9 |
| Heat up time to 70℃ (min) | 68 |
| Dimension | |
| Bath opening / depth (W x L, D) (mm / inch) | 498 x 300, 165 / 19.6 x 11.8, 6.5 |
| Exterior (W x L x H) (mm / inch) | 564 x 392 x 290 / 22.2 x 15.4 x 11.6 |
| Net weight (kg / lbs) | 18.5 / 40.8 |
| Electrical requirements (120V, 60Hz) | 60Hz, 8.3A |
| Cat. No. | AAH46033U |
