Description

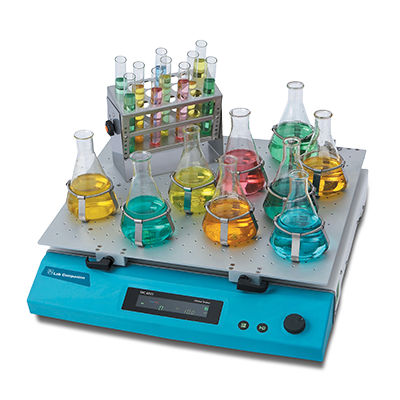

SKC-6200 Shaker (orbital, 2″ stroke)
Structural Functional Features
- Standard 350rpm, Maximum 500rpm. (option)
- Application of DD motor & triple cam system stable shaking ability (registration: 10-1678160)
- Provides the widest platform size model.
- Up to fifty-one 250ml flasks can be mounted at once.
- Dual platform mountable. (SKC-7000)
(only flasks less than 250ml can be mounted on the bottom part) - Provided Maximum 50.8mm shaking radius model.
- Convenient platform detachment system.
- Stable shaking with low center of gravity structure.
- Corrosion-resistant outer surface with powder coating and PP material.
- Structure prevents the sample from flowing into the inside.
- Model awarded Good Design certification
Use Convenience Features
- Accurate shaking with PID feedback control.
- Provides Quick, Timer, and Program modes.
- Wait On/Off timer. (up to 99 hours 59 minutes)
- More reliable shaking simulation by clockwise / counterclockwise rotation.
- Soft start and stop shaking function.
- Easy to use with fast acceleration/deceleration function.
- Possible to stop the equipment at the same position.
- Automatic rpm adjustment in case of instability.
- Equipment stoppage and alarm in case of abnormal shock.
Outstanding Safety
- Alarm occurs when the current rpm differs from the set rpm.
- Over-current protection.
Differentiated Program Operation
- 20 patterns can be saved.
- 20 segments can be set per pattern.
- Time, rpm, and rotation direction can be set for each segment.
- Includes up to 99 repeat operations.
· Provides all information on equipment operation.
· Convenient operation with shaking start/stop button.
· Convenient operation by changing rpm with control knob.
· Clear display. (clear VFD)
| Shaking system | |
|---|---|
| Motion type | Orbital |
| Speed range (rpm) 1) | 30 to 500 |
| Max. speed per permissible load 2) | 250rpm (max. 13 kg) 200rpm (max. 28 kg) |
| Amplitude size (mm / inch, dia.) | 50 / 2 |
| Speed stability 3) (rpm, %) | 1 |
| Timer (wait on/off) | 99hr 59min |
| Dimension | |
| Platform (Small, W x D, mm / inch) | 580 x 520 / 22.8 x 20.5 |
| Platform (Large, W x D, mm / inch) | 660 x 520 / 26 x 20.5 |
| Exterior (W x D x H, mm / inch) | 582.8 x 618 x 122.2 / 22.9 x 24.3 x 4.8 |
| Net weight (Kg / lbs) | 65 / 143.3 |
| Electrical requirements (120V, 50 / 60Hz) | 0.8A |
| Cat. No. | AAH30126U |
